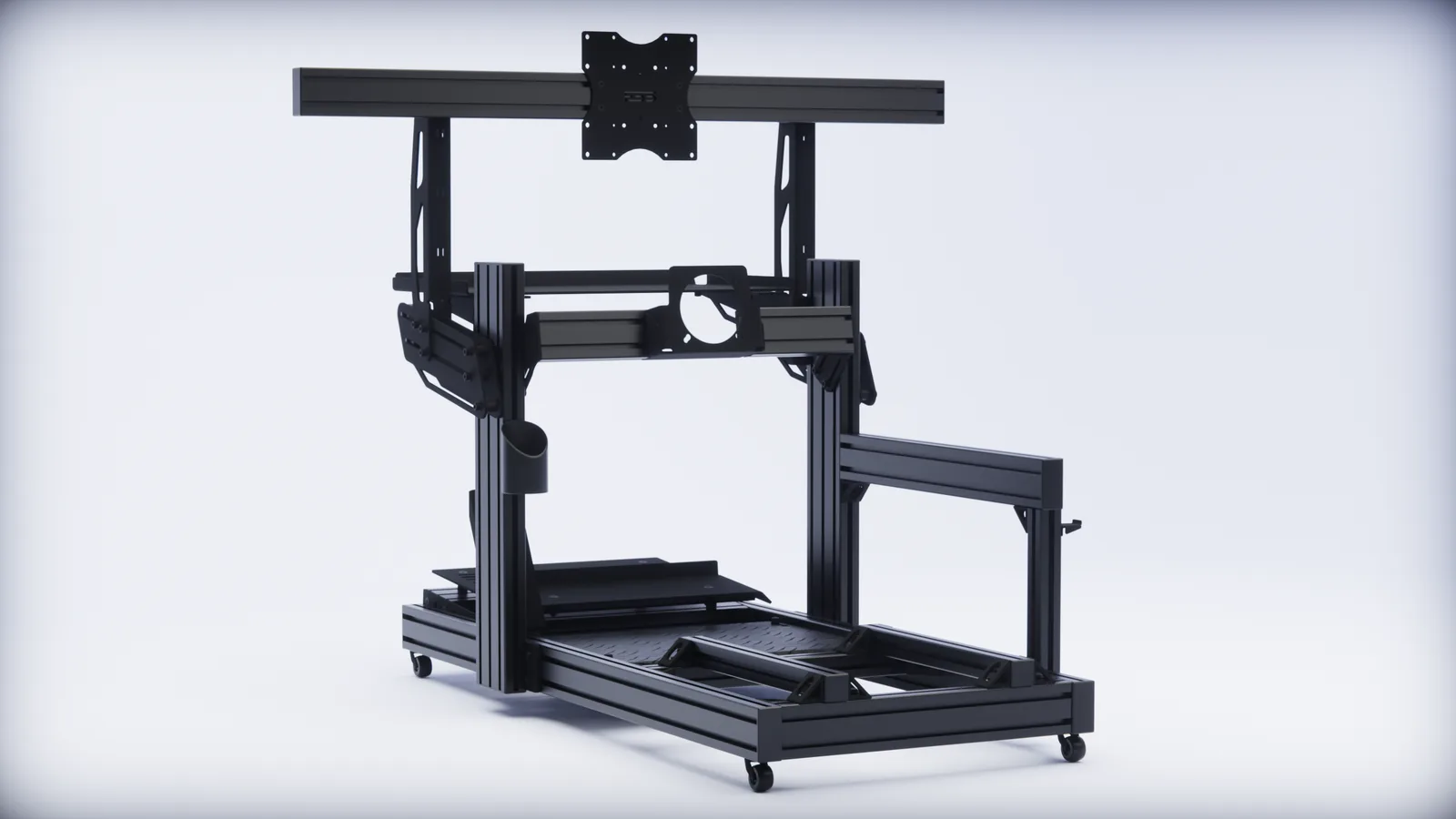

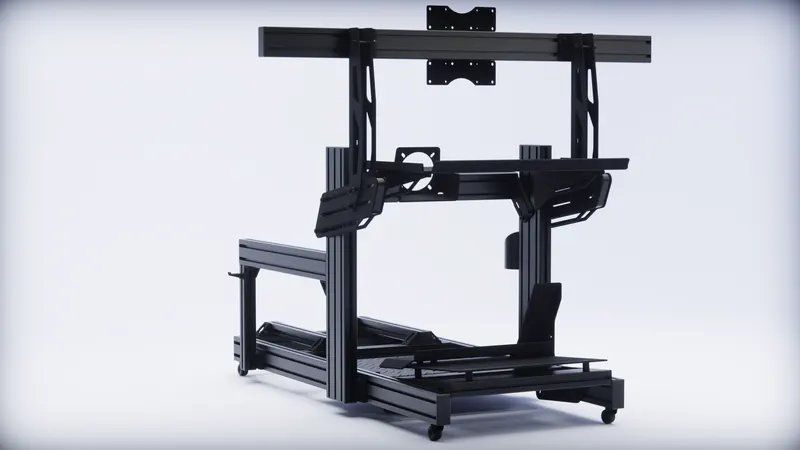

Ready‑To‑Race Chassis - Core Kit with Regular Pedal Frame

The Ready‑To‑Race Chassis - Core Kit with Regular Pedal Frame is a high‑rigidity simulator racing chassis designed for enthusiasts seeking a durable, modular, and professional‑grade foundation for their sim racing setup.

Built around an extra rigid black anodized aluminum extrusion spaceframe, this chassis combines strength, adjustability, and clean styling. Our high rigidity line of extrusion features no hollow corners, and thick 4.32 mm walls. The system is assembled using textured black powder coated brackets and premium Grade 8 black oxide coated hardware for maximum durability.

Whether you are building your first serious simulator or upgrading from a lightweight frame, the Core Level Kit delivers a stable platform engineered for immersive racing performance.

---

Key Features

• High rigidity 40-series aluminum t-slot extrusion spaceframe construction
• 40x80 mm main chassis frame rails from front to rear
• Textured black powder coated brackets
• Grade 8 black oxide coated hardware throughout
• Modular and adjustable design for any driver
• Bottom mount pedal tray
• Compatible with a wide range of sim racing components

---

Included in This Kit

Core Components

• FSS-71-A-11001 - Core Chassis Frame
• FSS-71-A-22401 - Regular Pedal Frame
• FSS-71-A-11602 - Single Monitor Frame Rail
• FSS-71-A-11651 - FSS Vesa Mount, 200mm (x1)
• FSS-71-A-11601 - Monitor Frame Support Arms
• FSS-71-A-22501 - Wheelbase Frame, Narrow
• FSS-71-A-11501 - PC Shelf
• FSS-31-A-55503 - Caster Wheel Set (x4 per set)
• FSS-31-A-55502 - Cup Holder (x1)
• FSS-31-A-11301 - Floorboard (x1)
• FSS-31-A-55501 - Headset Hook (x1)

All nuts, bolts, washers, spacers, plastic extrusion end caps are included with each core component assembly

---

Available Add-ons

• FSS-71-A-11603 - Triple Monitor Frame (Add-on): Includes all of the parts you need to mount two additional monitors on either side of your main monitor to give you a more immersive racing experience
• FSS-71-A-11604 - Fourth Monitor Frame (Add-on): Includes all of the parts you need to mount an additional monitor above your main monitor to keep critical race information and social spaces in your line of sight

These items are not included in the base RTR kit, they will appear as a separate item in your cart if you choose to add them

---

Technical Specifications

Specification	Details
Total Weight	~ 100 kg
Overall Dimensions	~ 60" by 50"

---

Compatibility

Wheelbases

• Fanatec
  • CSL DD
  • Clubsport DD
  • Podium DD
• Simagic
  • Alpha Mini V1/V2
  • Alpha V1/V2
  • Alpha Ultimate V1/V2
• Simucube
  • Sport
  • Pro
  • Ultimate

Pedals

• Fanatec
  • CSL Pedals
  • CSL Elite Pedals
  • Clubsport V3
• Simucube
  • All ActivePedal Models
  • Simucube Co-Pedal
• Simlabs
  • XP1 Loadcell Pedal Set

Seats

• Most side mount racing seats

---

Shipping Information

We are currently taking preorders, lead times may be extended as we determine optimal product sourcing, packaging, and shipping as we ramp up production.

Item	Details
Ships From	ORLANDO, FLORIDA
Shipping Weight	Details coming soon
Lead Time	4 WEEKS TO SHIP
